Year 5 · Summer term · Shape · Step 5
Year 5 Draw lines and angles accurately worksheets
Draw angles and triangles accurately with a ruler and a protractor. A free editable Word sheet with eight fluency and six reasoning questions. The answers follow the questions: the same sheet again with every answer in red.
Download the worksheets
Print on A4 portrait: every page carries the sheet twice, side by side, so you can cut down the middle and two pupils each get a half to stick in their books. Every question sits in its own box and pupils write their answers in their book. The answers follow the questions in the file: the same sheet again with every answer in red. It opens in Word, Google Docs, Pages and LibreOffice, so you can change numbers, delete questions or add your own. There is no scaffolded version of this step yet.

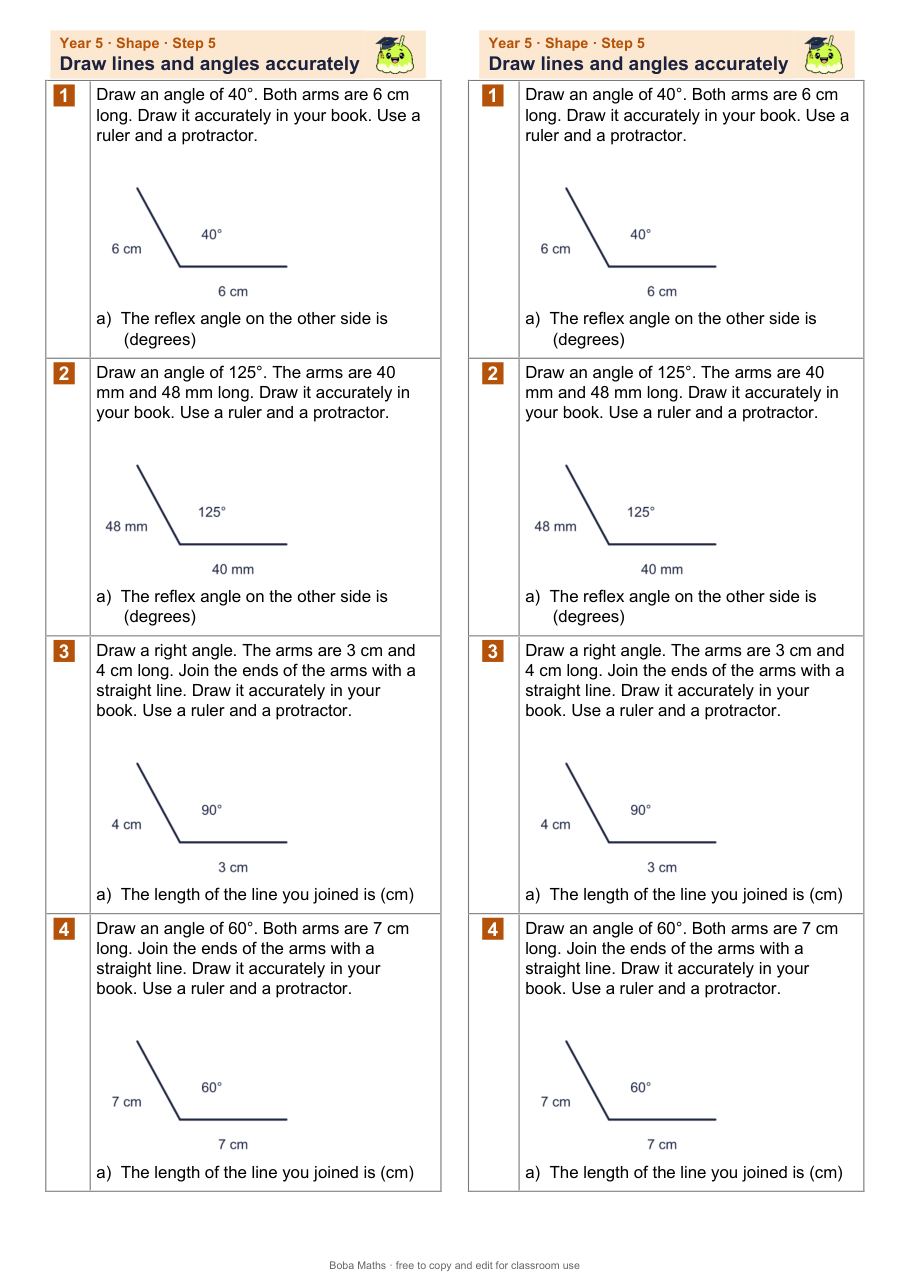

Not scaffolded sheet
The same questions without the extra support. For pupils working at the expected standard: eight fluency questions first, then the reasoning questions.
Sample questions from this step
These are real questions from the first set of the sheet (two from the fluency page, two from the reasoning page). Open each one to see the answer.
- Draw an angle of 40°. Both arms are 6 cm long. Draw it accurately in your book. Use a ruler and a protractor.a) The reflex angle on the other side is (degrees) ____
Show the answer
320
- Draw an angle of 60°. Both arms are 7 cm long. Join the ends of the arms with a straight line. Draw it accurately in your book. Use a ruler and a protractor.a) The length of the line you joined is (cm) ____
Show the answer
7
- Max wants to draw an angle of 15°. Max puts a mark on the protractor and draws the arm shown in the picture.Max: My angle x is 15°.Is Max correct? Circle yes or no.Circle yes or no.Explain how you know.
Show the answer
No; No. Angle x is 165°. Max read the wrong scale: 15° is on the inner scale but the arm starts from the zero line on the outer scale, so angle x is 165°.
- Draw a right-angled triangle. The two short sides are 6 cm and 8 cm. Draw it accurately in your book. Use a ruler and a protractor.a) The perimeter of the triangle is (cm) ____b) The area of the triangle is (cm²) ____
Show the answer
24; 24
What is on each sheet
- Fluency: eight questions that start easy and get harder, with the key skill of the step practised in different ways.
- Reasoning: questions with pictures, tables and number lines (spot the mistake, true or false and explain, puzzles with one answer, an open-ended task).
- Answers in the same file: the sheet again with every answer in red, so there is only one file to download.
- Boba characters give the instructions in speech bubbles. They are decoration only.
Why one set of questions?
- Everyone works on the same content, and support comes from scaffolds instead of different, easier tasks. This follows the mastery approach described by the NCETM and the thinking in Ofsted's 2021 mathematics research review.
- Worked examples and visual representations lighten the load for pupils who need it, as the Education Endowment Foundation describes.
